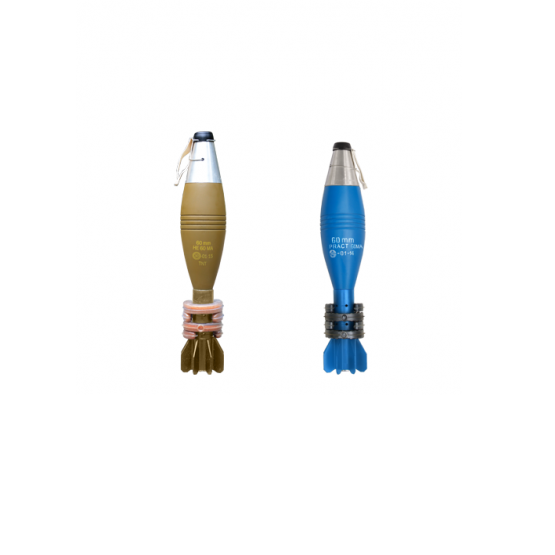

The Mortar Bomb HE 60MA is designed to get the best fragmentation and blast effects, making it a bomb of utmost efficiency, used for fighting uncovered enemy manpower, as well as unarmored means of transportation.
Performance:
-
- Reached firing range – 3130 m;
- Spheroidal graphite Cast Iron Body;
- Arming distance fuze AF66/AF621
PRACT 60MA is used for training purposes, their flight ballistic is identical to those of the high explosive version.
Weapon compatibility:
60 mm Mortars of NATO Standard – M2 and M19; Commando M60CMA; M60MA; BRANDT model 35; Tampella; Thompson Houston – Hotchkiss – Brandt Commando; MO-60-63; 60 mm M-57, etc.
CHARACTERISTICS
| HE 60MA | PRACT 60 MA | |
| Body | Cast Iron | Cast iron |
| Overall length, mm | 308 | 314 |
| Weight, kg | 1.6 | 1.6 |
| Weight of inert charge, kg | – | 0.2 |
| Max. range, m | 3130 | 3130 |
| Gas pressure, bar, (P max PIEZO) | ≤ 450 | ≤ 450 |
| Initial velocity, m/s | 222 | 222 |
| Fra men s (average), pcs | 500 | – |
| Fuse | AF62, AF64, AF66, AF621 | Inert |
| Manufacturer | ARSENAL | |
PACKING
| 10 pcs. Mortar Bombs are packed in a wooden case | ||
| HE 60MA | PRACT 60 MA | |
| Case dimensions, mm | 420 x 400 x 216 | 470 x 400 x 216 |
| Case volume, m3 | 0.036 | 0.036 |
| Total weight, kg | 25 | 25 |
