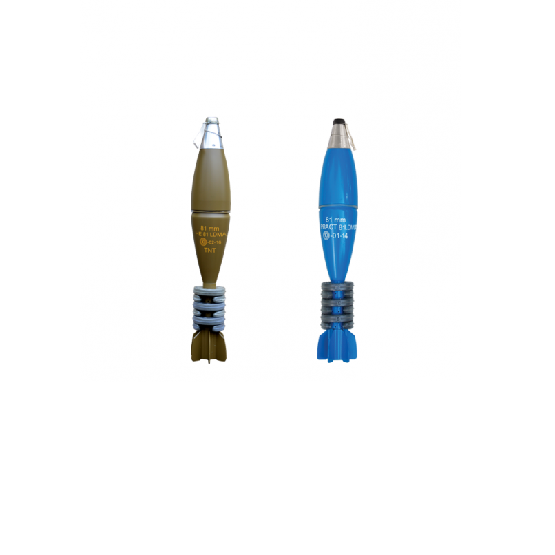

The HE 81LDMA is one of the most up-to-date high explosive bombs of 81mm caliber, used for fighting uncovered enemy manpower, as well as unarmored means.
Performance:
- Reached firing range – 6200 m;
- Spheroidal graphite Cast Iron Body;
- Increased fragmentation effect approximately 1400 effective fragments;
- Arming distance fuze
AF66 (Point detonating, super quick action, boresafe type, muzzle safety distance 40 m) fuze.
AF621 (Point detonating, super quick action, boresafe type) fuze.
The PRACT HE 81LDMA is used for training purposes, their flight ballistic is identical to those of the high explosive version.
CHARACTERISTICS
| HE 81LDMA | PRACT 81LDMA | |
| Body | Cast Iron | Cast iron |
| Length fused, mm | 496 | AF66 (496) AF621 (489) |
| Weight fused, kg | 4.15 | 4.15 |
| Highest Max Pressure, bar (piezo) | 950 (0+6) | 950 (0+6) |
| Weight of Explosive charge, kg | 0.750 | |
| Weight of inert charge, kg | – | 0.750 |
| Fuse AF66 arming distance, m | Not less than 40 | – |
| Operating Temperature Range, °C |
From minus 40 to plus 50 | From minus 40 to plus 50 |
| Max Range, m | 6200 | 6200 |
| Muzzle velocity, m/s | 312 | 312 |
| Manufacturer | ARSENAL | |
PACKING
| One fuzed Mortar Bomb with 6 pcs. Increment charges is packed in a Container; 6 pcs. Containers are arranged in a wooden case | ||
| HE 81LDMA | PRACT 81LDMA | |
| Case dimensions, mm | 600 x 325 x 260 | 600 x 325 x 260 |
| Case volume, m3 | 0.051 | 0.051 |
| Total weight, kg | 38 | 38 |
