MAIN FEATURES:
- The Mine can be laid manually or by mechanical from a mine laying machine, in snow and in water by hand or mechanically.

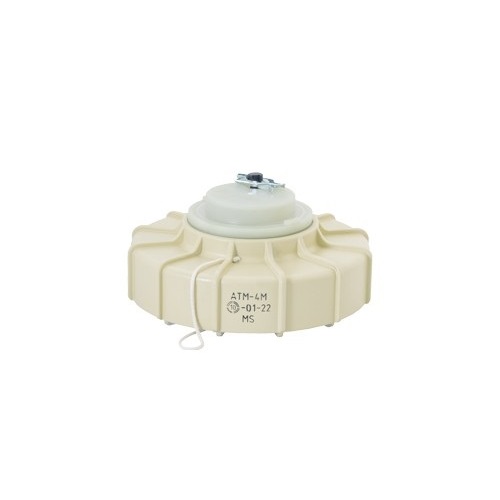

- The Anti-Tank mine ATM-4M is fitted with fuze AF-PM – a mechanical, pneumatic fuze with contact action and ability to be returned from combat mode to transport mode.
| MAIN-TECHNICAL CHARACTERISTICS | ATM-4M |
| Body material | Plastic |
| Unfuzed Mine weight, kg | 3.5 max |
| Fuze weight, kg | 0.45 |
| Type of explosive | MS |
| Weight of explosive, kg | 2.2 max |
| Fuze | AF-PM mechanical, pneumatic |
| Arming time, s
Activating effort, kgf |
from 20 to 300, with ability to be returned from combat to transport mode
from 120 to 750 |
| Dimensions, required for the usage of a mine-layer, mm: | |
| – diameter | 250 max |
| – height of laying | 70 max |
| Operational temperature range, 8С | from minus 40 to 50 |
| Manufacturer | ARSENAL |
| PACKING: | UNFUZED ANTI-TANK MINE ATM-4M | |
| 12 (twelve) unfuzed Mines are packed in a wooden case. | ||
| Wooden case dimensions, mm | 665x560x340 | |
| Wooden case volume, m3 | 0.128 | |
| Wooden case Gross weight, kg | 58 | |
| CLASS OF EXPLOSION HAZARD | 1.2D, UN 0138 | |
| PACKING: | FUZES AF-PM | |
| 24 (twenty four) Fuzes, packed in a sealed plastic bag, are accommodated in a wooden case | ||
| Wooden case dimensions, mm | 602x400x418 | |
| Wooden case volume, m3 | 0.1 | |
| Wooden case Gross weight, kg | 25 | |
| CLASS OF EXPLOSION HAZARD | 1.2B, UN 0107 | |
